Vaderstad NZ 500 & 600 Mounted Cultivators

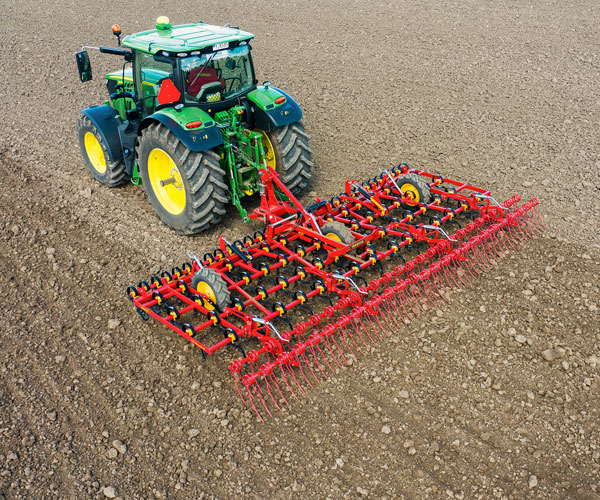

NZ Mounted is a mounted tine harrow with a 5-6 metre working width. Thanks to its ingenious drawbar, NZ Mounted is able to move independently from the tractor, thereby offering an exceptional contour following comparable to a trailed machine. With Agrilla Nova tines fitted on four axles and a tine spacing of 9cm, you benefit from an intensive seedbed preparation.
The hydraulic CrossBoard Light levels the field and provides an intensive cultivation, ensuring that clods are crushed and the soil is levelled, prior to the harrow tines.

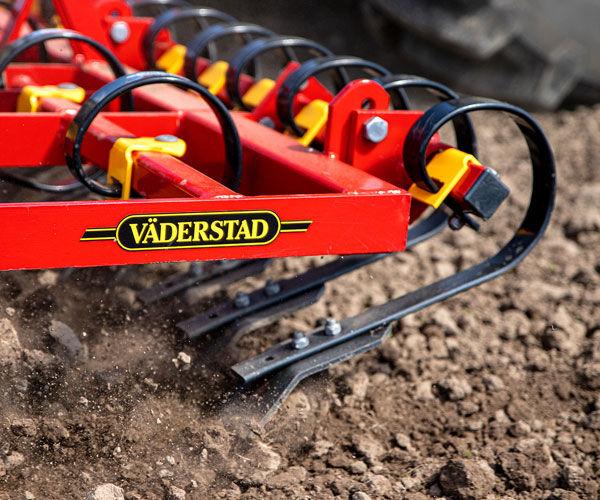

The Agrilla Nova tines are fitted on four axles with 9cm tine spacing. The tines distribute the soil so that larger clods are placed on the top and smaller particles deeper, which is favourable for early drilling.
For improved finishing a single or double following harrow can be fitted.
Finance available
Features
- Low coupling weight – NZ Mounted is mounted on the tractors three-point linkage, making it easy to manoeuvre in the field. When folded, the transport width is only 2.05m. The low weight of the machine reduces the lifting requirements.
- Versatile following harrow – To finish the seedbed preparation, the following harrow creates an evaporation barrier by sorting larger aggregates and weeds to the surface. The following harrow is mounted with rubber suspension to maintain a long working life. Both the angle and aggressiveness can be adjusted.
- Point configurator – To meet differing farming needs, Väderstad offers a wide range of points for cultivators and tine harrows. With the right choice of points you are able to optimise the working result on your fields, providing the best start possible for the next crop.
- Precise depth control – OffSet mounted support wheels provides NZ Mounted with stability lengthwise and ensures that the tines in the first row work at the same depth as the last row. The tractor threaded tyres eliminates bulldozing, while the large wheel diameter keeps the working depth and gives a smooth ride.
Tech Spec
NZ Mounted | 500 | 600 |
Effective working width (m) | 5.0 | 6.0 |
Transport width (m) | 2.05 | 2.05 |
Transport height (m) | 2.5 | 3.0 |
Weight (kg) | 1400 | 1600 |
Number of tines | 54 | 64 |
Tine spacing (cm) | 9 | 9 |
Wheel dimensions (support wheels) | 190/95-15 | 190/95-15 |
Hydraulic requirements | 1 SA & 1 DA | 1 SA & 1 DA |
Draught requirements from (hp) | 80-120 | 100-140 |
